Electromagnetic Brake Motor 360 watt, Manufacturers, Pune, India

We are Manufacturer, Supplier of Electromagnetic Brake Motors 360 Watt, Electromagnetic Brake Motors from Pune, Maharashtra, India.

Continuous Rating with Frequent Start Stop. Load Holding & Minimum Overrun. Works when Power Off ( Brake - Activated ), By its Failsafe Braking Action. Fitted at the Back side Of the Motor. Rotates in Clockwise or Counter Clockwise Direction. Terminal box or Flying Lead Wires for Connections.

Specifications :

Output Power W	Model	Frequency Hz	Supply Voltage Volt	Current A	Starting Torque Kg.cm	Rated Torque Kg. cm	Rated Speed RPM	Capacitor UF
360	104 4G IW 360	60	110 V Single Phase	2.0	21.3	22.1	1500	-----
360	104 4G IX 360	50	230 V Single Phase	2.2	24.3	27.5	1350	-----
360	104 4G IZ 360	50	415 V Single Phase	2.2	24.3	27.8	1350

Gearmotor Torque Table :

The maximum permissible torque is 200 kg. cm

50Hz Unit : kg.cm
RPM	500	416	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	68	78	99	110	135	160	199	258	304	336	360	400	400	400	400	400	400	400	400	400

60Hz Unit : kg.cm
RPM	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	56	67	89	104	124	150	188	245	295	225	352	390	400	400	400	400	400	400	400	400

Gear Boxes are sold separately.
A Sky blue colored background indicates gear shaft rotation in the same direction; a Brown background indicates rotation in the opposite direction as the motor shaft. The speed of the Gear Motor is calculated by dividing the motor's synchronous speed (50 Hz; 1500 RPM & 60 Hz; 1800 RPM) by the ratio The actual speed is 2~20% less than the displayed value, depending upon the load size. Characteristics, specifications and dimensions are subjected to change without prior notice.

Dimensions :

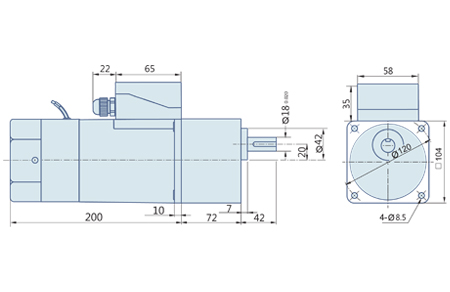

360 Watt : AC Geared Motor With Terminal Box

360 Watt : Round AC Induction Motor With Terminal Box

360 Watt : AC Geared Motor With Lead Wires

Wiring Diagram :

Wiring diagram for Three Phase Motors

Wiring diagram for Three Phase Motors

When Sw1 is switched ON, Electromagnetic Brake is released & motor starts rotating. When Sw1 is switched OFF then Electromagnetic Brake will be applied stopping the motor immediately & holding the load. Apply voltage on the blue brake lead wires only, to release the Electromagnetic Brake. To change the direction of rotation, interchange any two wires between U, V & W.

Change the direction of the motor only after it stops rotating, if the attempt is made during rotation, the motor may ignore the reversing command or change the direction after some time.
